DU.313 / 5W3S2PVST03
Ascaso

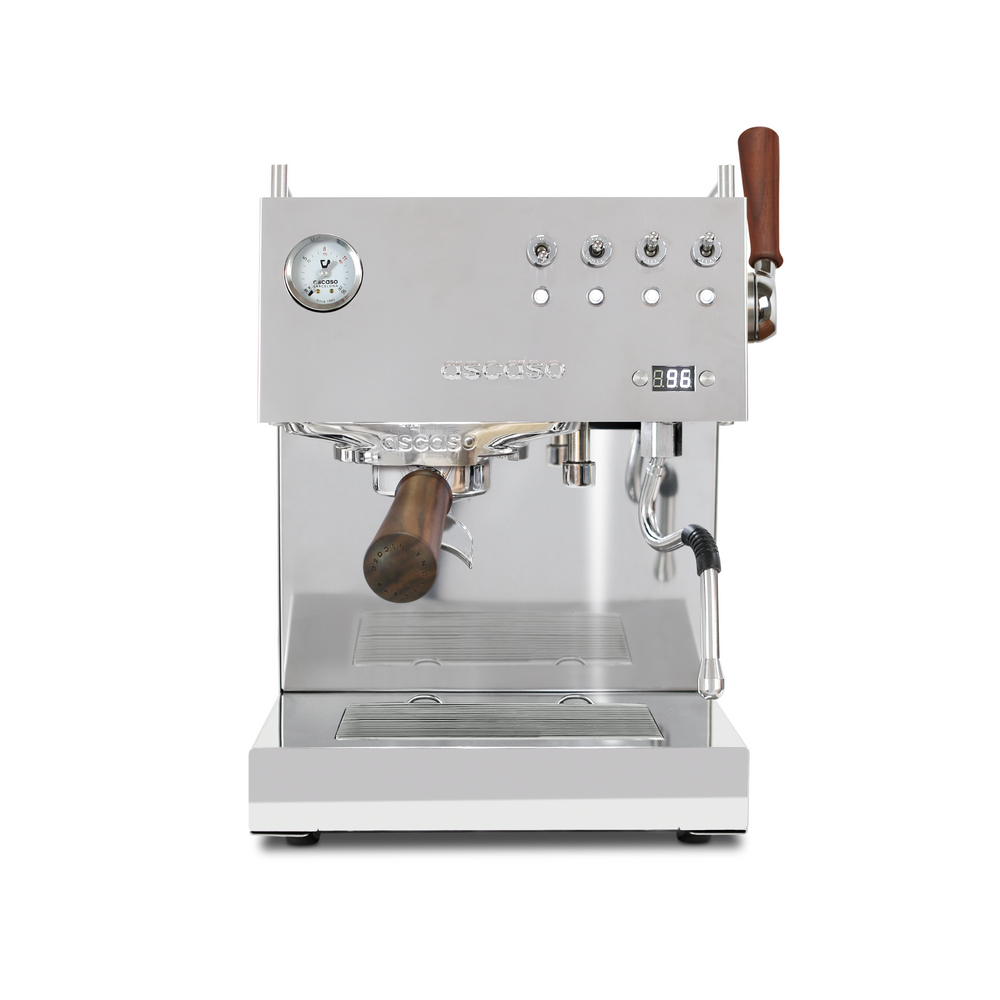

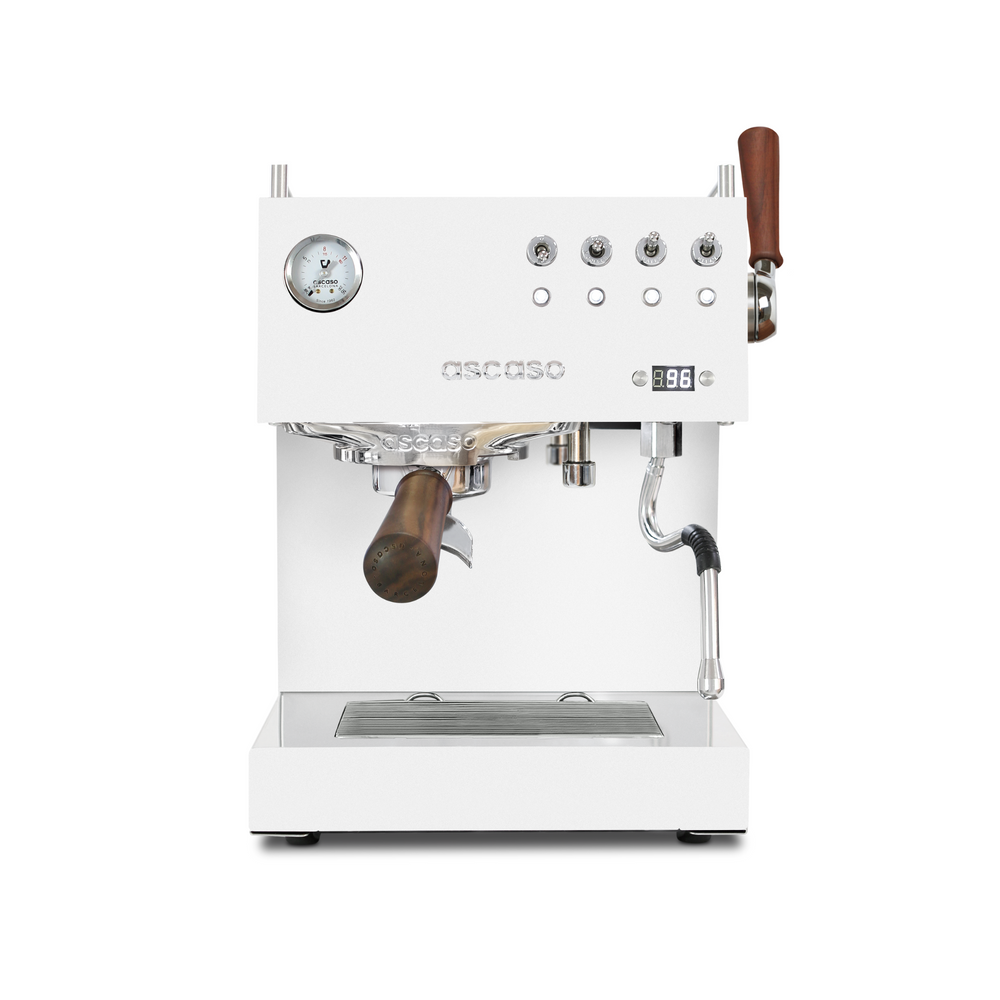

Steel DUO Plus

$3,504.91

$2,920.76
Shipping calculated at checkout.
Don't forget these...

For coffee enthusiasts who value performance, seamless workflow, efficiency and modern design.

Designed by Ascaso’s engineering team, the Steel range—available in single and dual thermoblock models—combines a minimalist, industrial appearance with impressive functionality in a small footprint.

With a dual thermoblock system for simultaneous espresso brewing and milk steaming, the Steel optimizes workflow for home baristas.

Features and Functionality
  • High quality materials and components
  • Stainless steel steam wand, multi-directional (360º), cool to touch
  • Powerful steam / hot water
  • 2L Water reservoir
  • Active cup warmer
  • Dual Thermoblock
  • Stainless steel tray
  • Metal Switches
  • Pressure Gauge
  • Lighting for work area
  • Equipped with a 15- or 20-amp plug

All Steel DUO Pluses are now ETL-certified to comply with Canadian standards.

JOYSTICK STEAM VALVE

Ascaso proposed a professional and more ergonomic solution adapted to Home use. Making the steam wand easier to use and improves control capability. A more natural, smooth and intuitive movement

FOOD GRADE SILICONE GASKET

This gasket can withstand temperatures of up to 100ºC. Ascaso tests shows that this gasket have double the normal lifespan of standard high-quality rubber seal rings. Food safe material. Odourless and tasteless. Specially designed rubber seal rings, thick and flexible. The silicone makes engaging the portafilter easier thus less effort and strain on your wrist.

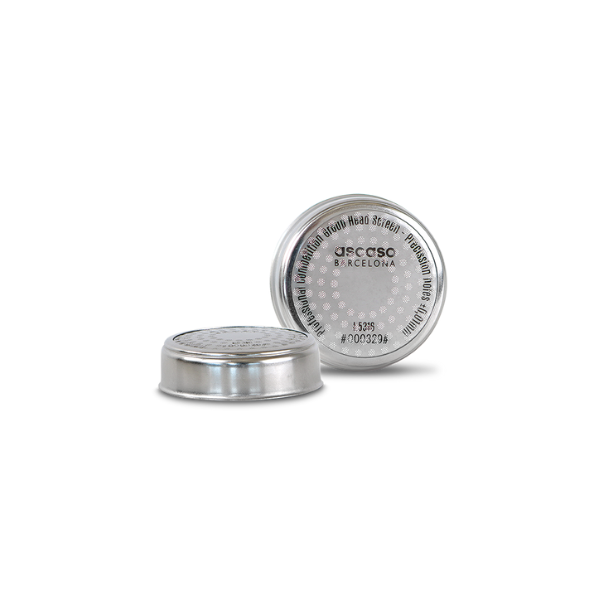

COMPETITION FILTERS

AISI 304 stainless steel. Integrated membrane, completely smooth surface avoiding coffee residue deposits, which increases its useful life and facilitates cleaning. Provides uniform water distribution, improving extractions.

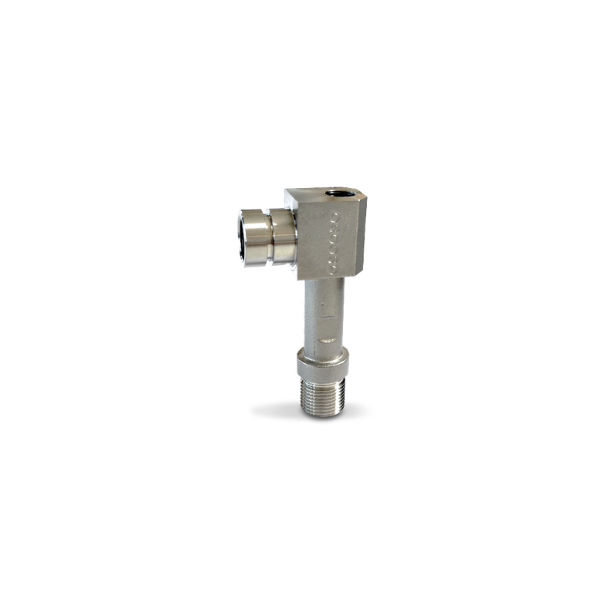

STAINLESS STEEL TAP

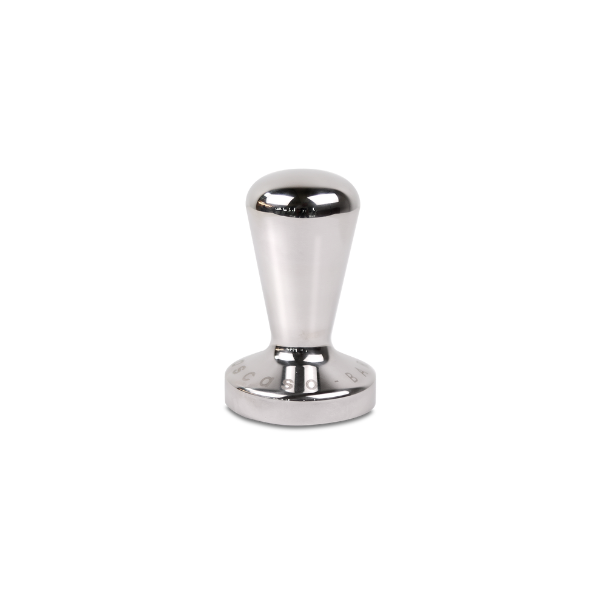

STAINLESS STEEL TAMPER

A standard accessory of the highest quality and finish

TWO STEAM TIPS

1 hole (Ø 0.1mm) and 3 holes (Ø 0.75mm). In order to adjust the machine to every need.We have developed some videos where we explicitly explain how to make a cappuccino with both outlets.

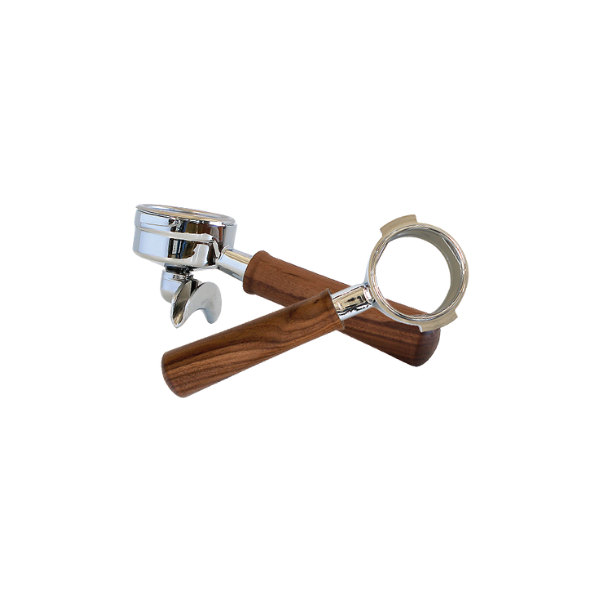

TWO COMPLETE PORTAFILTERS

1 x 2-Coffee portafilter , and 1 x bottomless portafilter

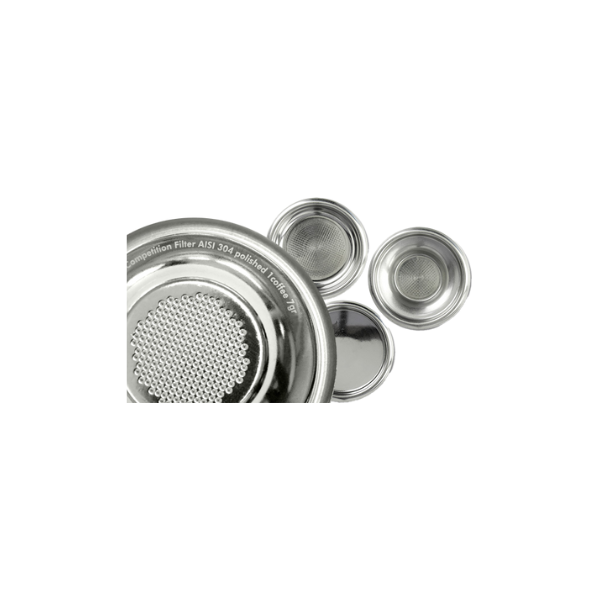

FIVE FILTERS

7g, 14g, 18g, 21g, and blind filter

WIRE STAINLESS STEEL TRAY

New wire tray in stainless steel. Removable for easy cleaning
Technical Data

 Steel DUO Plus
Dimensions (W x D x H) 10.6" x 12.4" x 16.6"
Weight (lbs) 33
Power Supply  15-amp: 120V / 60 Hz / 990W / 9.4A
20-amp: 120V / 60 Hz / 2100W / 17.5A
Water Tank (L) 2
Body Stainless Steel
Steam Wand Stainless Steel | 360º | Heat Resistant |
ø 10 mm
Filterholder Stainless Steel ø 58 mm
Pump Pressure Regulable by OPV
Coffee Thermostat Regulated by PID
Steam Thermostat Regulable by PID
Manometer Yes
OPV (Overpressure Control) Yes
Active Cup Warmer Yes
PID Control Yes
Volumetric Control Yes
Group Thermal Cover Yes
Walnut Wood Handle Yes
Joystick Steam Valve Yes
Food Grade Silicone
Filterholder Gasket		 Yes
Competition Shower Yes
Stainless Steel Tamper Yes
Two Steam Tips (1 and 3 Holes) Yes
Two Filterholders
(2 Coffees & Bottomless)		 Yes
Five Filters 7 / 14 / 18 / 21g and Blind
Stainless Steel Tap Yes
Wire Stainless Steel Tray Yes
